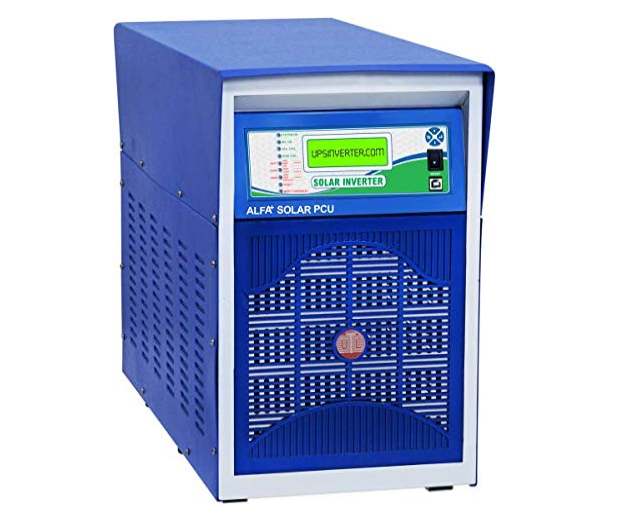

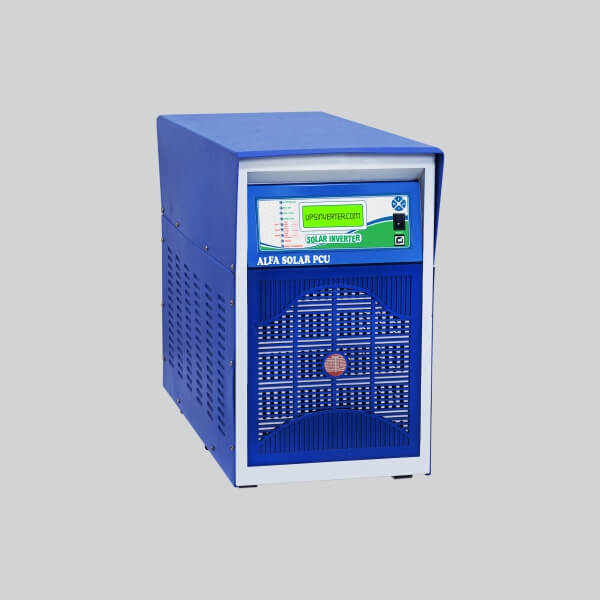

UTL Alfa+ Solar PCU 3kVA/48V

Alfa+ Solar PCU 3kVA/48V that is mainly used in Hospitals, schools, industries petrol pumps, banks and also in home. It continuously monitor battery and solar voltage as well as grid and output voltage with their current. PCU (Power Conditioning Unit) is an integrated unit consists of grid charger, inverter, MPPT Solar Charger. It continuously monitors Battery and Solar voltage as well as Grid and Output voltage with their currents. MPPT based solar charger extracts the maximum power from the solar panels whereby it increases the efficiency of the system. MPPT charger has multistage charging which maintains the battery charging voltage such that it increases the lifespan of battery. Alfa+ Solar PCU 3kVA/48V is a Model of Power Conditioning Unit (PCU) which uses Solar (primary) and Grid (secondary), to charge the batteries. Since the usage of power from the grid is secondary, grid power is only used when solar energy is not present and the battery voltage level reduces to 11.5V/Battery (Default 11.5V, Configurable). Grid power is also needed when solar power generation is less and the battery voltage is reduced to 11.5V/Battery (Default 11.5V, Configurable) Battery Low Buzzer - 11.2V Battery Low Cut - 11.0V Battery High Cut - 16V Battery Charging Voltage by SPV - 14.5V Battery Charging Current by SPV - 18A Battery Charging Voltage by GRID - 14.2V Battery Charging Current by GRID - 10A Grid Low Cut Voltage ( IT Load Disable/Enable) - 120/175V Grid High Cut Voltage ( IT Load Disable/Enable) - 280/260V Inverter Nominal Output Voltage - 230VAC Output Supply Phase - 1 phase, 3 wire Output Waveform - Sine wave Nominal Frequency - 50.0 HZ Load Current - 13.5 A Inverter Peak Efficiency - >88% Protections - Overload, Battery low, Battery high, Output low, Output high, Output Short Circuit, Overheat, Under Frequency, Over Frequency, Solar panel reverse Display Parameters - Battery Voltage, Charging Current, Discharging Current* Solar Voltage, Solar Current, Instantaneous Power, Grid Voltage, I/P Frequency Output Voltage, Output Load% O/P Frequency Grid, Inverter & SPV Charger Status. Switches - Reset for System ON/OFF, up, Down, Back, Enter (for LCD Configuration). Indications - System ON, Inv. ON, SPV Charging, Grid Charging, Battery Low/High, Overload, Overheat, Mains Low, Mains High, Under frequency, Over frequency, (IT Mode, Grid Charging, NLSD, Boost Charging, DG Mode)Enable/Disable* Max Relative Humidity @25*C (non condensing) - 95%. Weight - 44KG Dimension (L X W X H) - 18 X 10 X 10 inch
